01 / GANTRY & HOARDING
A heavy-duty foundation.
A heavy-duty pavement gantry provided a loading platform and hoist landing. Full hoarding was designed, supplied and fitted by our team.
CASE STUDY / LONDON
The Novello
Theatre.
Planning and design oversight for a complex scaffolding installation bringing together loading, lifting and suspended access.
THE PROJECT
A demanding installation.
A coordinated solution.
We oversaw the planning and design for this challenging project, bringing several different elements together in one installation. Our team on site did an exceptional job delivering a scaffold with loading, lifting and suspended access requirements.
02 / RUNWAY SYSTEM
Moving materials.
The installation included a Nico runway system with a push trolley and a 250 kg cable hoist.
03 / PASSENGER & GOODS HOIST
Access from the gantry.
A 1,500 kg passenger/goods hoist was installed up off the heavy-duty gantry.
04 / SUSPENDED SCAFFOLD
Working above lower roofs.
The entire rear of the scaffold was suspended above the lower roofs, using chemical-fix ties into the walls.

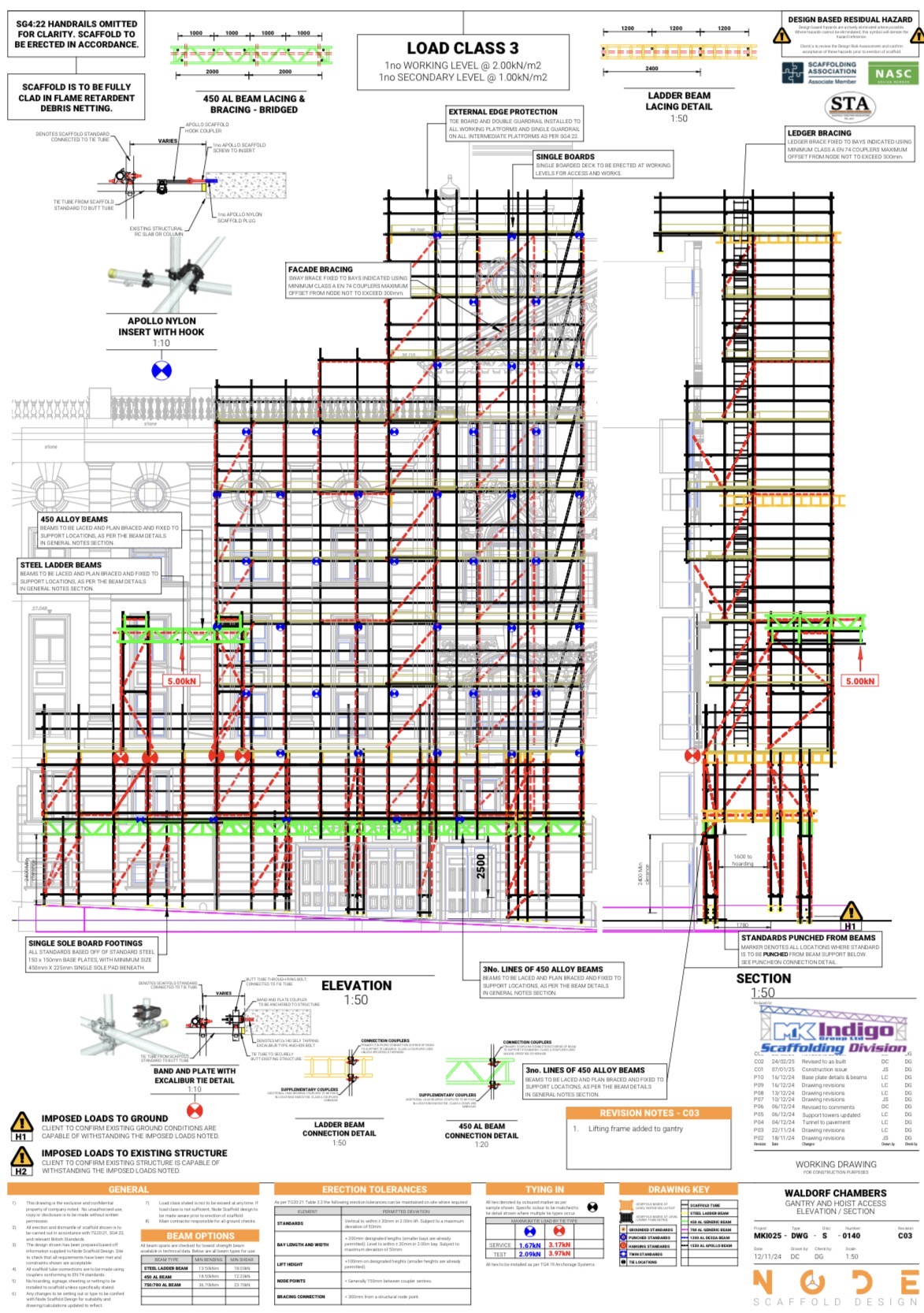

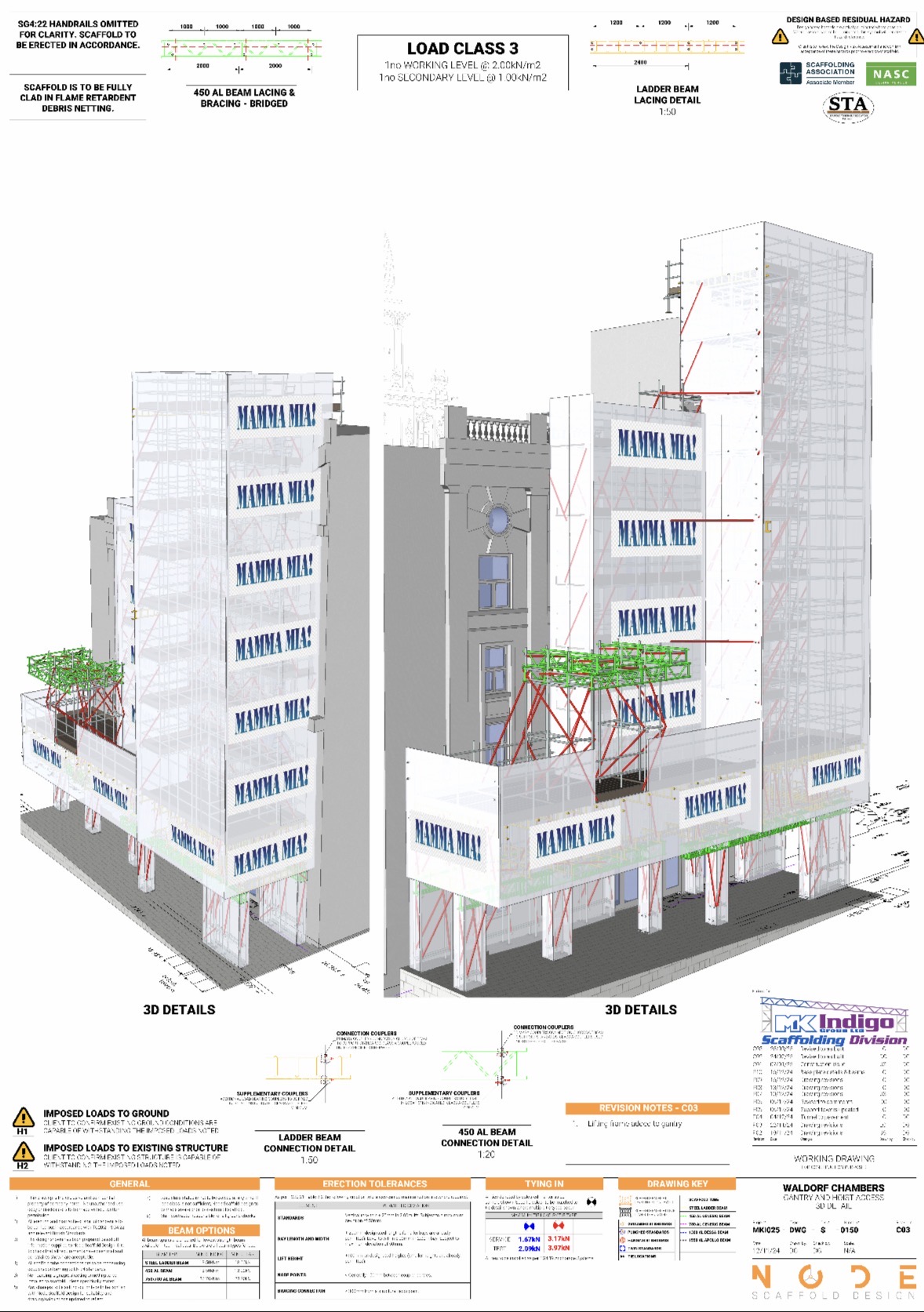

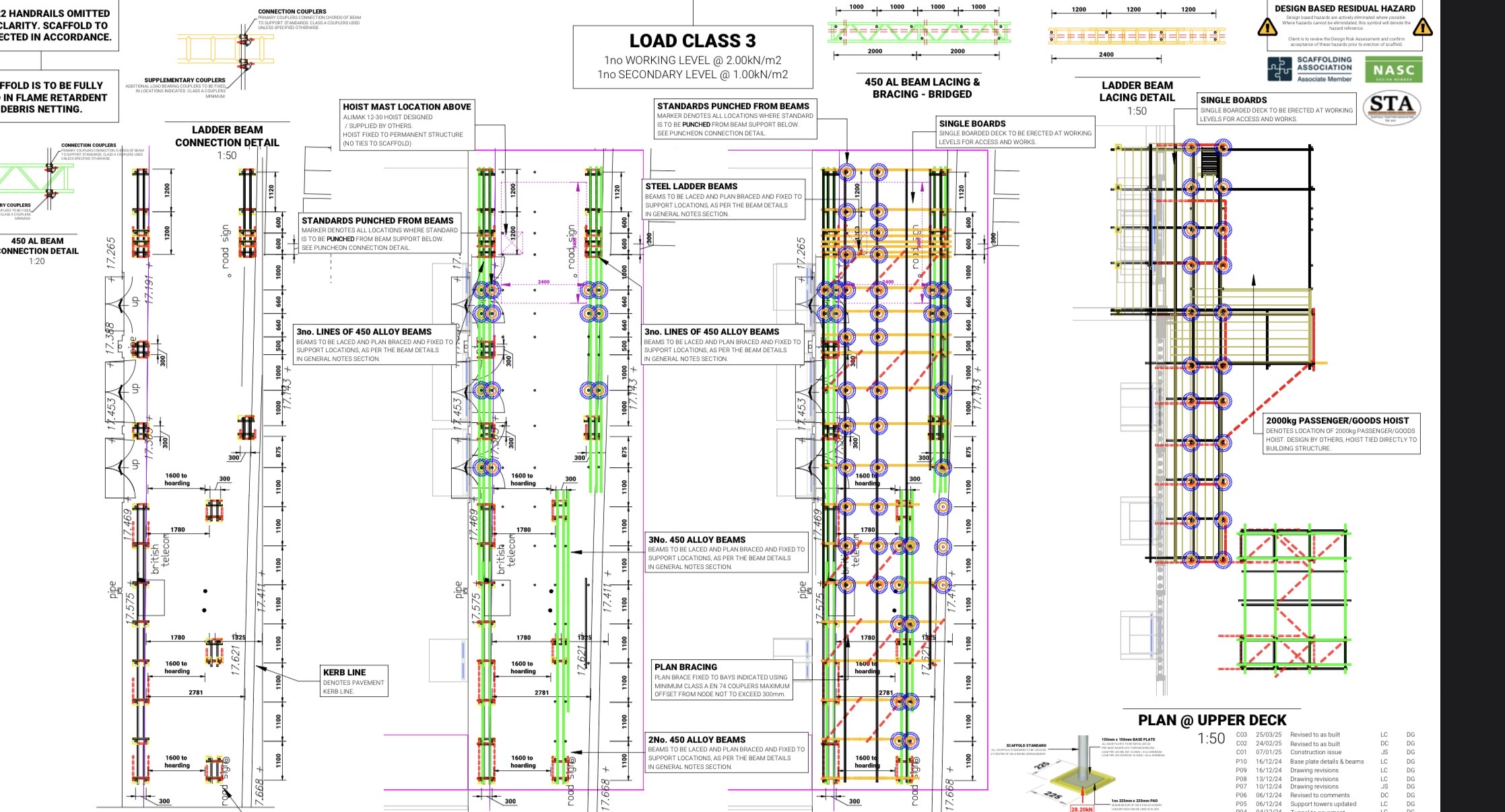

PROJECT PLANNING & DESIGN
From design to delivery.
Our involvement included overseeing the project planning and scaffolding design.
Select a drawing to view it at full size.
THE PROJECT LOCATION
Aldwych,
London.
The Novello Theatre
Aldwych, London, WC2B 4LD
Carried out in May 2025.
